Sound-Based Music Analysis

Research and development: Dr Pierre Couprie
Coordination: Prof Simon Emmerson & Prof Leigh Landy

Version: 1.x
Language: English
Minimum system requirement: Macintosh Multicore Intel Processor, OS10.6.8 or later (including OS10.10 Yosemite), 4GB RAM
(No Windows version will be developed)

logo-dmu    CMYK LScape

Pierre Couprie Software

Faites également la promotion de votre Page


“The term sound-based music typically designates the art form in which the sound, that is, not the musical note, is its basic unit.” Leigh Landy, Understanding the Art of Sound Organization

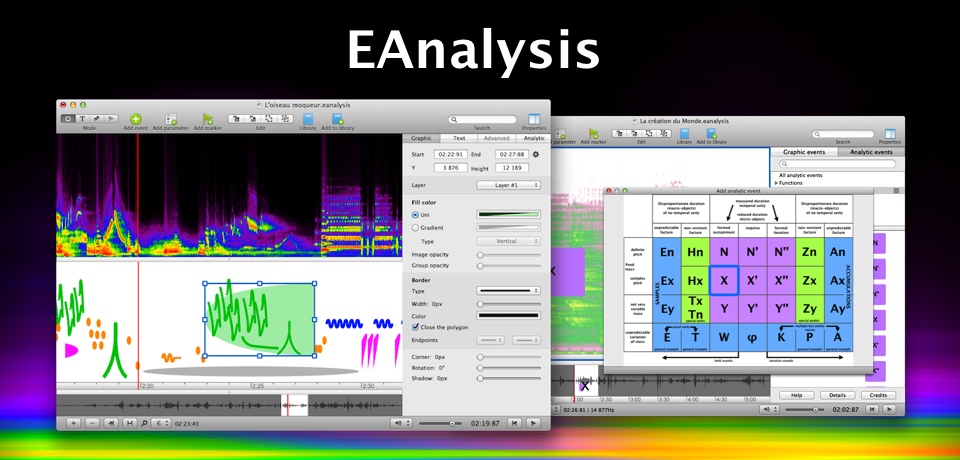

The development of EAnalysis is part of the research project entitled ‘New multimedia tools for electroacoustic music analysis’ at the MTI Research Centre of De Montfort University (Leicester, UK). The initial project (2010-2013) was funded by the Arts and Humanities Research Council (AHRC).

This piece of software aims at experimenting new types of graphic representations and new analytical methods with an intuitive interface and adapted tools for analysis purposes.


  • Visualise sonogram (linear, logarithmic, differential, similarity matrix) and waveform.
  • Import several audio and/or movie files to analyse multitrack works or compare different works.
  • Work with video to analyse video music, soundtrack, performance, sound installation, etc.
  • Create beautiful representations with graphic events on different layers.
  • Analyse with analytical events and sound/musical parameters.
  • Create your own analytical lists of parameters and share them.
  • Annotate during playback with time text.
  • Use graphic tablet or interactive whiteboard to draw representation.
  • Compute audio descriptors with libxtract Vamp plugins
  • Compute filters with SuperVP or Audiosculpt from graphic annotations (rectangle, polygons, drawing)
  • Use several types of views in the same interface.
  • Create charts and maps from sound extracts: paradigmatic chart, generative tree, soundscape map, etc.
  • Create synchronised slideshow.
  • Create layers of sonograms from several tracks to analyse space motions, difference between versions of same work, or different works.
  • Create (self-)similarity matrix, BStD graphs, cloud points or correlation graph from audio descriptors or imported data
  • Save configurations (snapshots).
  • Import data from other software like Sonic Visualiser (annotation layer), Audiosculpt (markers and audio descriptors) or Acousmographe
  • Import Pro Tools information sessions and create graphic representation from sound clips.
  • Export to images, movies, and text files (txt, csv, xml, json).
  • Export without media to share analysis without copyright restrictions.

See manual for more details.


download Download installer of EAnalysis for Macintosh OS10.6 or later

If you have problem with installer, you can use the manual installer:
download Download manual installer for EAnalysis for Macintosh OS10.6 or later

  • Unzip the file
  • put EAnalysis.app inside Applications folder

download Download screenshots in High quality

Movie tutorials


Examples do not contain any audio or movie files. To open them, you must have a copy of works from audio CD, online store, or DVD.

Trois rêves d’oiseau by François Bayle, graphic representation by Pierre Couprie

download L’oiseau moqueur

download L’oiseau triste

download L’oiseau zen


Purchase and download audio files
Graphic representation was originaly realised with Acousmographe for ‘Demeter’ journal (Lille University):

De Natura Sonorum by Bernard Parmegiani, graphic representation by Pierre Couprie

download Ondes croisées


Purchase and download audio file
Graphic representation was originaly realised with Acousmographe for ‘La musique électroacoustique’ CD-ROM (INA-GRM/Hyptique)

Sud by Jean-Claude Risset, graphic representation by Pierre Couprie

download Part 1

download Part 2

download Part 3


Purchase and download audio file
Graphic representation was originaly realised for ‘Portrait Polychromes: Jean-Claude Risset’ (INA-GRM)

Diamorphoses by Iannis Xenakis

download Diamorphoses


Purchase and download audio file

Elephant by Gus Van Sant, sound track analysis by Pierre Couprie

download Elephant


Extract movie file from commercial DVD with Handbrake
